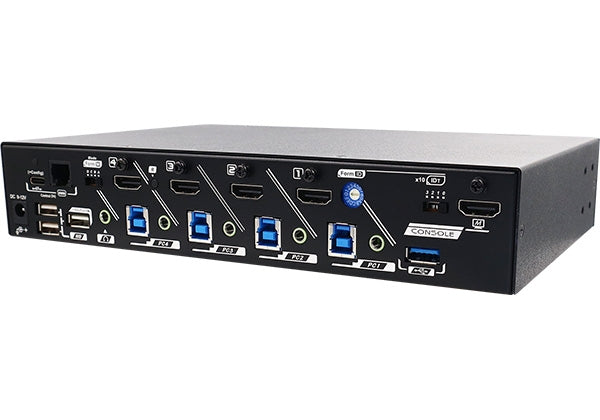

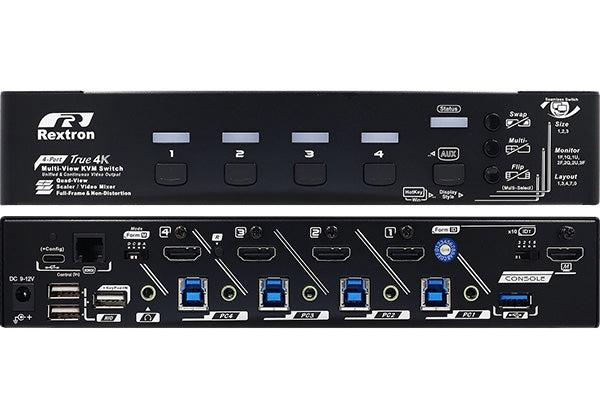

| 4 Ports True 4K HDMI Quad-View KVM Switch (QSKM-3114) | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Type | 4-Port HDMI Quad-View KVM Switch |
| Description | Multi-view KVM switch with PiP/PbP, seamless switching, and USB 3.2 sharing for managing up to four computers on one display. |
| Target Applications | SOHO, business, stock trading, education, healthcare, and industrial control |
| Display Modes | Full-View, Quad-View, PiP, PbP (1+3 / 3+1) |
| Video & Display Features | |
| Characteristic | Details |
| Resolution Support | True 4K HDMI |
| Multi-View Support | 1 / 2 / 4 sources on one monitor |
| PiP/PbP | Yes (customizable layouts) |
| Scaling | Adjustable size, position, and transparency |
| Aspect Ratio | 16:9 / 21:9 / 32:9 |
| Seamless Switching | Yes (zero latency, no black screen) |
| EDID Support | Stable transmission prevents flicker and signal loss |
| Full-Frame PbP | Pixel-to-pixel display without distortion or black borders |
| Control & Operation | |
| Characteristic | Details |

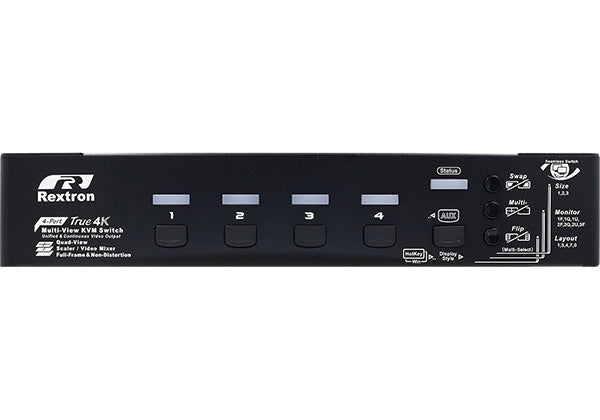

| Switching Methods | Front panel buttons, hotkeys, mouse roaming, serial commands |
| Auto Scan | Yes (automatic sequential monitoring) |
| Manual Scan | Yes (keyboard-based selection) |
| Mouse Roaming | Cursor-based switching between PCs |
| Custom Controls | Programmable mouse buttons and keypad support |
| Keypad-IN | Supports wired/wireless keypad control |
| Connectivity & Interfaces | |
| Characteristic | Details |
| KVM Ports | 4 Computer Ports |
| USB Support | USB 3.2 peripheral sharing and USB HID |
| Audio/USB Control | Independent switching via tracking system |
| Serial Interface | RJ-11 (DB9 via cable) and USB-C Virtual COM |
| Functionality | |
| Characteristic | Details |
| Multi-PC Control | Control up to 4 computers simultaneously |
| Split Screen | Flexible layouts for multi-source viewing |
| Peripheral Sharing | Keyboard, mouse, audio, and USB devices |
| Serial Control | Supports RS-232 and virtual COM for automation |
| Additional Features | |
| Characteristic | Details |
| Driver Requirement | No software or drivers required |
| Customization | Programmable keypad keys and command-line control |
| Use Case Flexibility | Ideal for monitoring, multitasking, and industrial applications |
