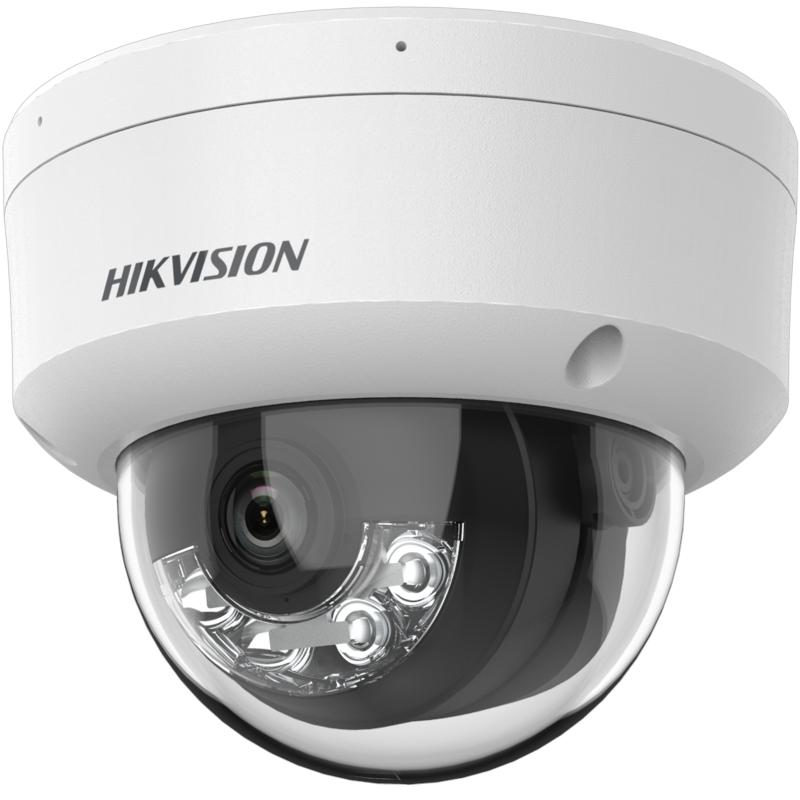

HIKVISION NETWORK DOME CAMERA 2.8mm 6MP (DS-2CD1163G2-LIU)
| DS-2CD1163G2-LIU(F), 6 MP Smart Hybrid Light Fixed Dome Network Camera | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Category | Network Dome Camera |
| Resolution | 6 MP (3200 × 1800) |
| Description | Smart Hybrid Light fixed dome camera with human & vehicle detection, built-in microphone, IP67 & IK08 protection |
| Camera | |
| Characteristic | Details |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux @ F1.6; B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day/Night | IR cut filter |
| Angle Adjustment | Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355° |
| Lens | |
| Characteristic | Details |
| Lens Type | Fixed focal lens (2.8 mm / 4 mm optional) |
| Field of View | 2.8 mm: H 105°, V 55°, D 127° 4 mm: H 78°, V 38°, D 96° |
| Aperture | F1.6 |
| DORI | |
| Lens | Distance |
| 2.8 mm | D 76 m / O 30 m / R 15 m / I 7 m |
| 4 mm | D 115 m / O 45 m / R 23 m / I 11 m |
| Illuminator | |
| Characteristic | Details |
| Supplement Light | IR & White Light |
| Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Video | |
| Characteristic | Details |
| Main Stream | 20 fps @ up to 3200 × 1800 |
| Sub Stream | 20 fps @ 1280 × 720 / 640 × 480 / 640 × 360 |
| Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Bit Rate | 32 Kbps – 16 Mbps |
| Audio | |
| Characteristic | Details |
| Audio Type | Mono, built-in microphone |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network | |
| Characteristic | Details |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Protocols | TCP/IP, HTTP, HTTPS, RTSP, FTP, IPv6, ONVIF, QoS |
| Users | Up to 32 users |
| Storage & Events | |
| Characteristic | Details |
| On-board Storage | microSD up to 512 GB |
| Smart Events | Human & vehicle detection, motion detection, tampering |
| Power | |
| Characteristic | Details |
| Power Supply | 12 VDC or PoE (IEEE 802.3af) |
| Power Consumption | Max. 7.5 W |
| Physical & Environment | |
| Characteristic | Details |
| Material | Metal & Plastic |
| Dimensions | Ø121.4 mm × 97.6 mm |
| Weight | Approx. 550 g |
| Operating Temperature | -30 °C to 60 °C |
| Protection | IP67, IK08 |
| Certifications | |
| Characteristic | Details |
| Safety & EMC | CE, FCC, UL, CB, RoHS, REACH, WEEE |
