UNITEK 4K HDMI SPLITTER 1 IN 8 OUT (V1132A)
| UNITEK 4K HDMI Splitter 1 In 8 Out (V1132A) | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Type | HDMI Splitter (1 Input, 8 Outputs) |
| Description | Splits a single HDMI input into 8 identical outputs without loss of video or audio quality. Ideal for conference rooms, retail, healthcare, and large display setups. |
| Design | Compact, lightweight, plug-and-play with LED indicator |
| Video & Display Specifications | |
| Characteristic | Details |
| Maximum Resolution | 4K UHD @ 30Hz |
| Supported Resolutions | 4K@30Hz, 2K@60Hz, 1080P@60Hz |
| HDMI Version Support | HDMI 1.4b, 1.3, 1.2 |
| HDCP Support | HDCP 1.4a |
| 3D Support | Full HD 1080P @ 60Hz |
| Audio Specifications | |
| Characteristic | Details |
| Audio Formats | PCM 2ch, 2.1ch, 5.1ch, 6.1ch, 7.1ch |
| Sample Rates | 32kHz, 48kHz, 96kHz, 192kHz |

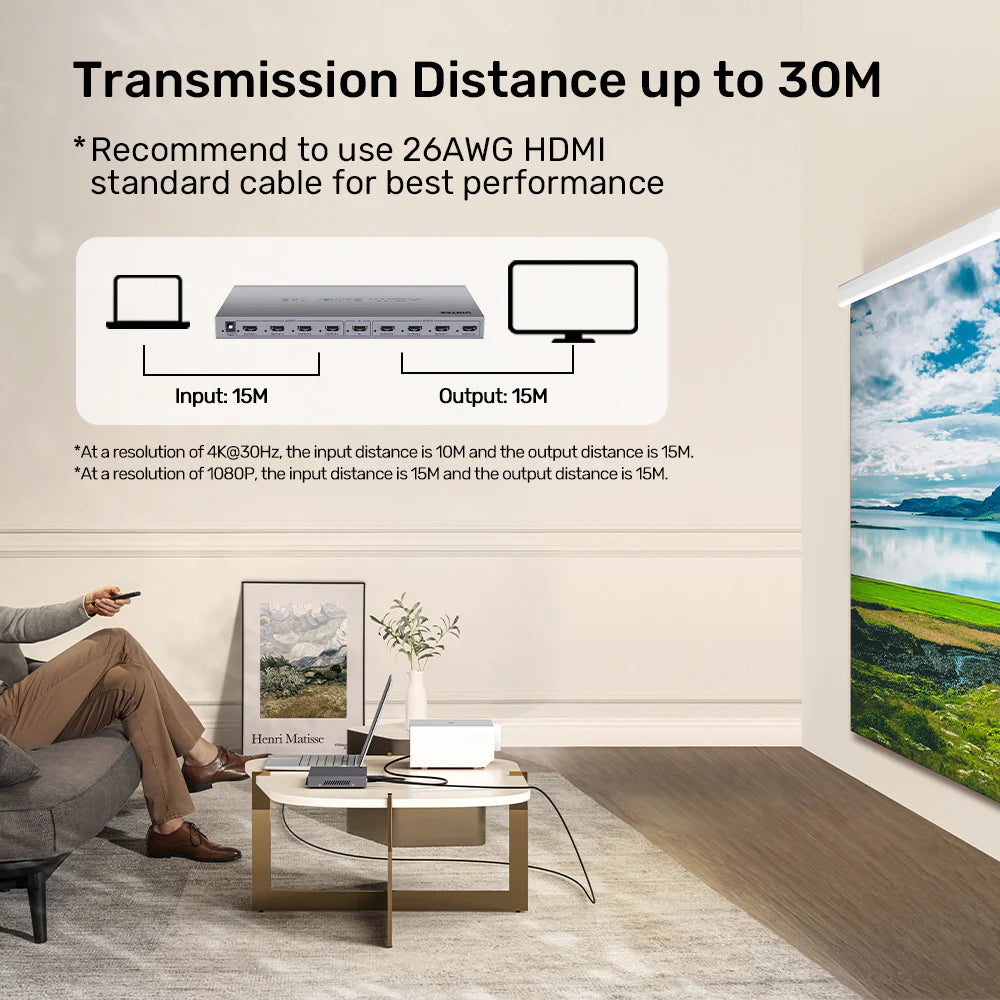

| Transmission Distance | |
| Characteristic | Details |
| 4K Input Distance | Up to 10 meters |
| 4K Output Distance | Up to 15 meters |
| 1080P Distance | Up to 15 meters (input and output) |
| Recommended Cable | 26AWG HDMI standard cable |
| Features | |
| Characteristic | Details |
| Screen Output | Simultaneous display on 8 screens |
| Synchronization | Real-time screen synchronization |
| Indicator | Blue LED when connected |
| Setup | No drivers required (plug-and-play) |
| Compatibility | |
| Characteristic | Details |
| Supported Devices | Computers, Xbox One, PS3, PS4 Pro, Fire Stick, Blu-ray players, Roku |
| Physical Specifications | |
| Characteristic | Details |

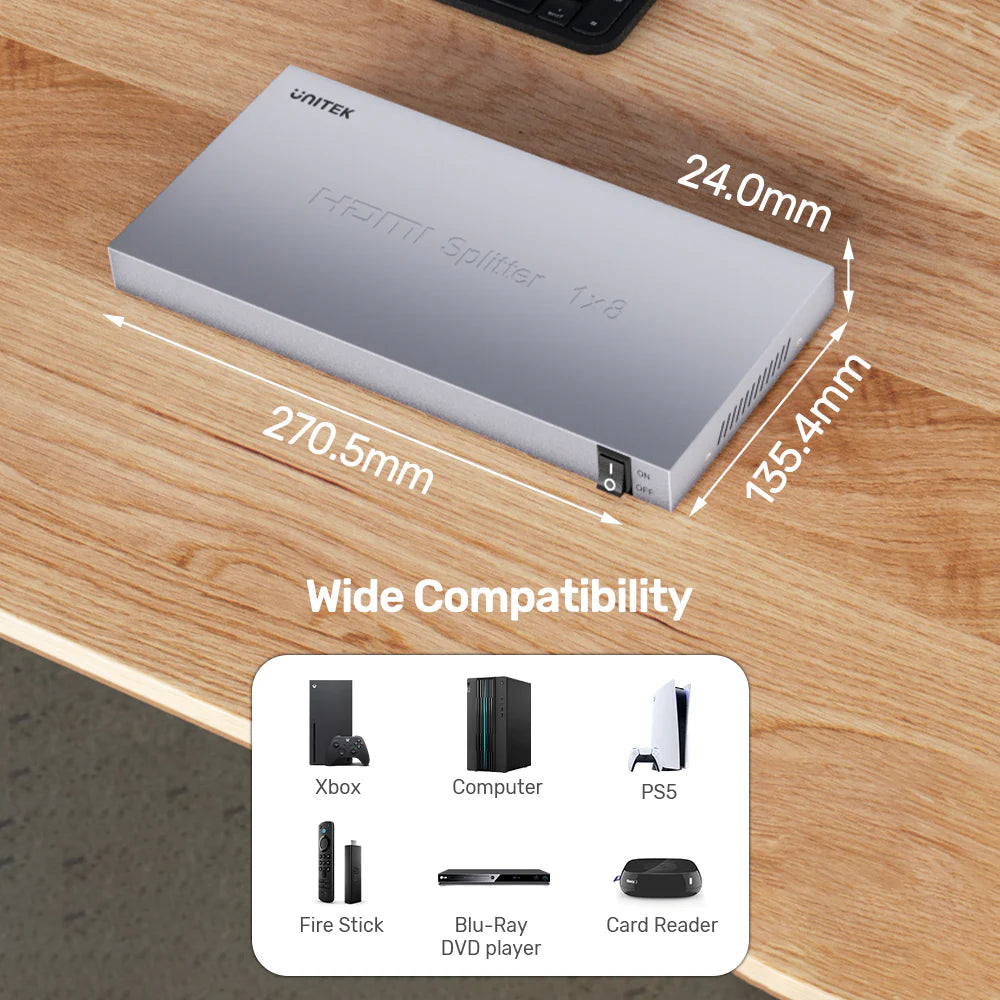

| Dimensions | 270.5 mm × 135.4 mm × 24.0 mm |
| Applications | |
| Characteristic | Details |
| Usage Scenarios | Conference rooms, events, retail displays, healthcare environments, large LED screen setups |
