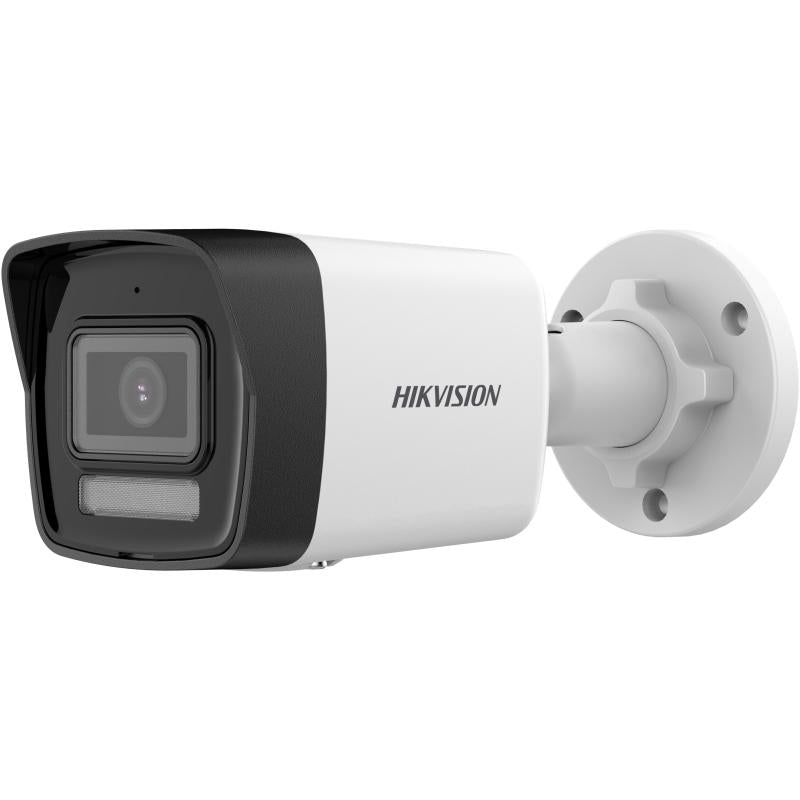

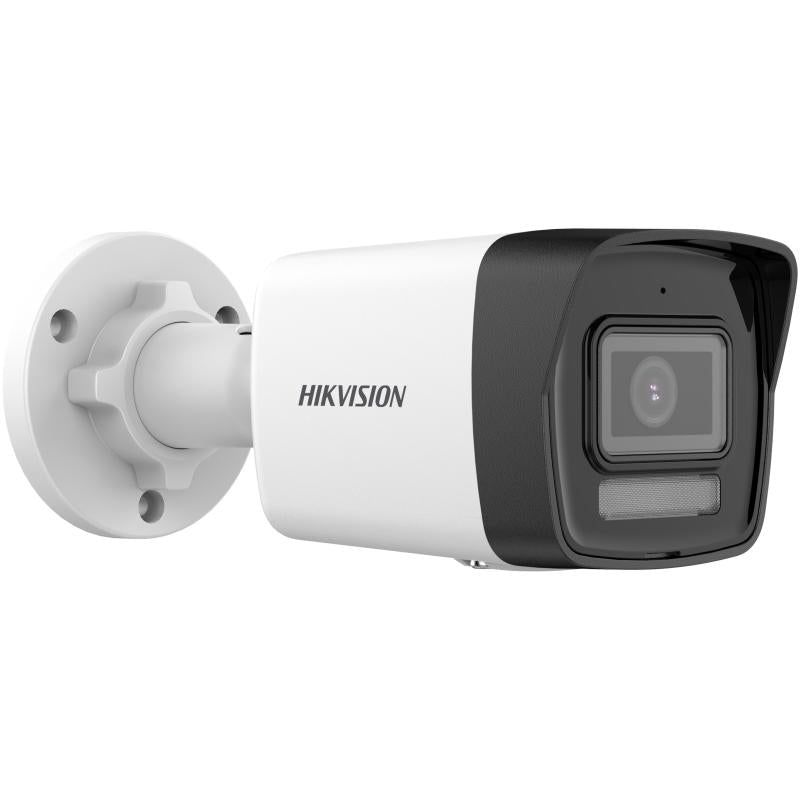

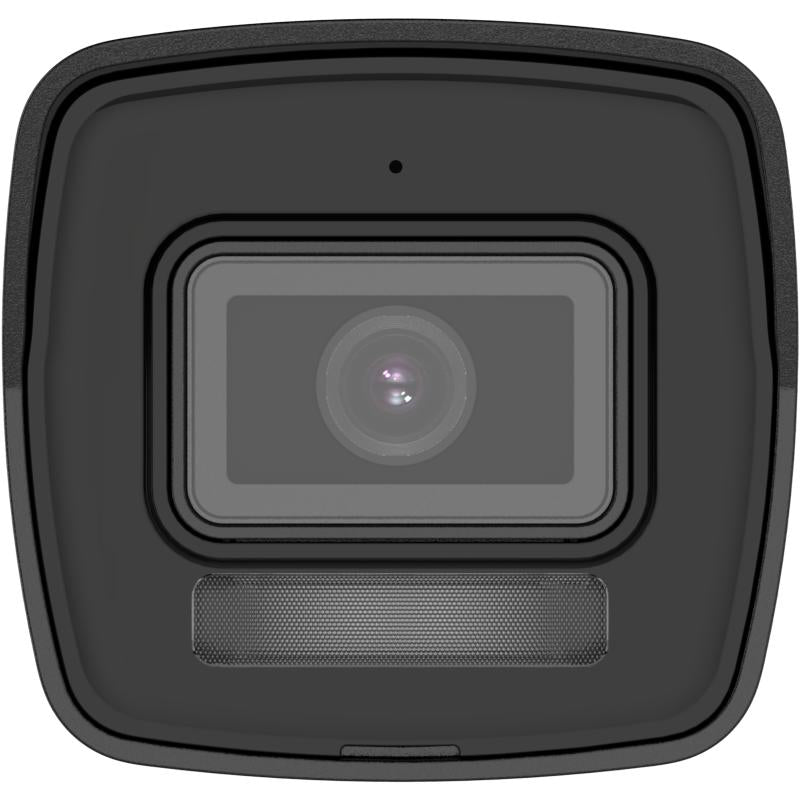

HIKVISION 2 MP Smart Hybrid Light Fixed Bullet Network Camera 2.8MM (DS-2CD1023G2-LIU)
| DS-2CD1023G2-LIU(F), 2 MP Smart Hybrid Light Fixed Bullet Network Camera | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Type | Fixed Bullet Network Camera |
| Description | 2 MP smart hybrid light network camera with human and vehicle detection, built-in microphone, and IP67 protection |
| Max. Resolution | 1920 × 1080 |
| Compression | H.265+, H.265, H.264+, H.264 |
| Ingress Protection | IP67 (water and dust resistant) |
| Camera Specifications | |
| Characteristic | Details |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux @ F1.6 (AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Lens | |
| Characteristic | Details |
| Lens Type | Fixed focal lens (2.8 mm or 4 mm optional) |
| Field of View (2.8 mm) | H: 103°, V: 56°, D: 121° |
| Field of View (4 mm) | H: 83°, V: 44°, D: 99° |
| Aperture | F1.6 |
| Illuminator | |
| Characteristic | Details |
| Supplement Light Type | IR and White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Characteristic | Details |
| Main Stream | 25 fps @ 1080p (50 Hz), 30 fps @ 1080p (60 Hz) |
| Sub-Stream | 25/30 fps @ 640 × 480 / 640 × 360 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR, VBR |
| Audio | |
| Characteristic | Details |
| Built-in Microphone | Yes |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network | |
| Characteristic | Details |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive |
| Protocols | TCP/IP, HTTP, HTTPS, RTSP, RTP, NTP, IPv6, FTP, SMTP, QoS |
| Users | Up to 32 users (3 levels) |
| Storage and Events | |
| Characteristic | Details |
| On-board Storage | MicroSD/SDHC/SDXC up to 512 GB (F model) |
| Event Detection | Motion detection (human & vehicle), video tampering, exception |
| Power and Environment | |
| Characteristic | Details |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af, Class 3) |
| Max. Power Consumption | 6.5 W (PoE) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Physical Specifications | |
| Characteristic | Details |
| Dimensions | 170.8 × 66 × 69.1 mm |
| Weight | Approx. 265 g |
| Material | Metal & Plastic |
