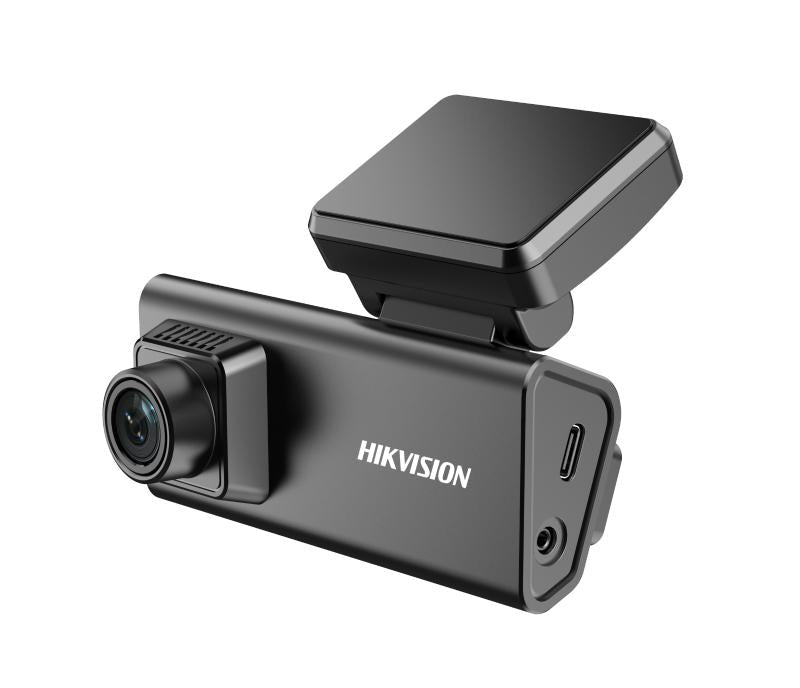

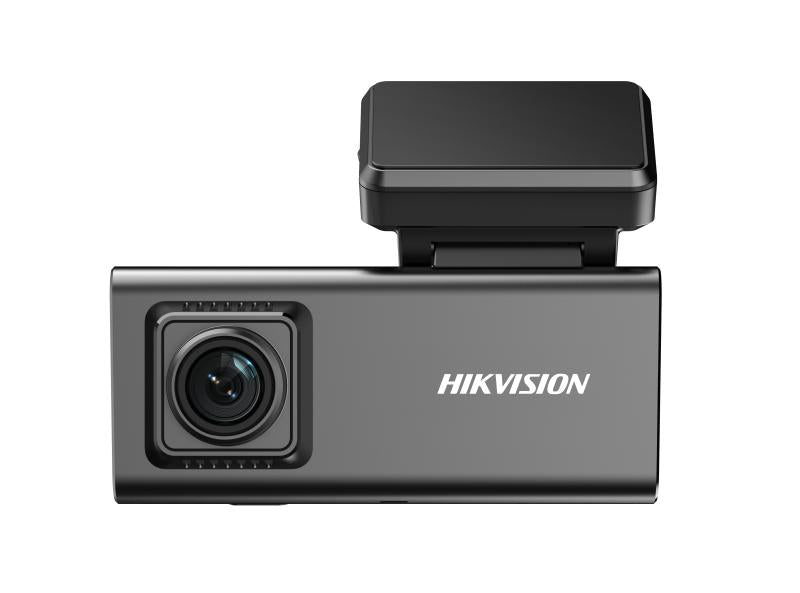

HIKVISION 3-Channel Dash camera (AE-DC2032-V300)
| AE-DC2032-V300, 3-Channel Dash Camera (Front + Rear + Cabin IR) | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Type | 3-Channel Dash Camera |
| Description | Front, rear and cabin IR dash cam with GPS, Wi-Fi, G-sensor, and optional 4G (V300 model) |
| Channels | Front + Rear + Cabin (IR) |
| Camera Specifications | |
| Characteristic | Details |
| Resolution | Front: 1080P, Interior: 720P, Rear: 1080P |
| Video Compression | H.265 |
| Image Sensor | CMOS |
| Field of View (FOV) | |
| Characteristic | Details |
| Front Camera | H: 111°, V: 58°, D: 134° |
| Interior Camera | H: 105°, V: 58°, D: 124° |
| Rear Camera | H: 102°, V: 53°, D: 124° |
| Lens | |
| Characteristic | Details |
| Aperture (Front) | F2.0 |
| Aperture (Interior) | F2.2 with 3D DNR (IR Night Vision) |
| Aperture (Rear) | F2.0 |
| Connectivity | |
| Characteristic | Details |
| GPS | Yes (speed display & route tracking) |
| Wi-Fi | Yes (Wi-Fi AP supported) |
| 4G Support | V300: Built-in 4G, V300 [N4G]: No 4G |
| Storage | |
| Characteristic | Details |
| Storage Medium | TF Card (32 GB to 256 GB) |
| Overwrite Support | Yes |
| Sensors & Features | |
| Characteristic | Details |
| G-Sensor | Yes (event lock on crash or vibration) |
| ADAS | Driving time reminder |
| Audio | Built-in microphone and speaker |
| Interface | |
| Characteristic | Details |
| Power Interface | Type-C |
| Power Supply and Consumption | |
| Characteristic | Details |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | ≤ 6.5 W |
| Environment | |
| Characteristic | Details |
| Working Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Working Humidity | 0% to 95% |
| Physical Specifications | |
| Characteristic | Details |
| Dimensions | 101.3 × 43.8 × 43.7 mm |
| Image Format | JPG |
| Software Reset | Yes |
| Online Upgrade | Yes |
