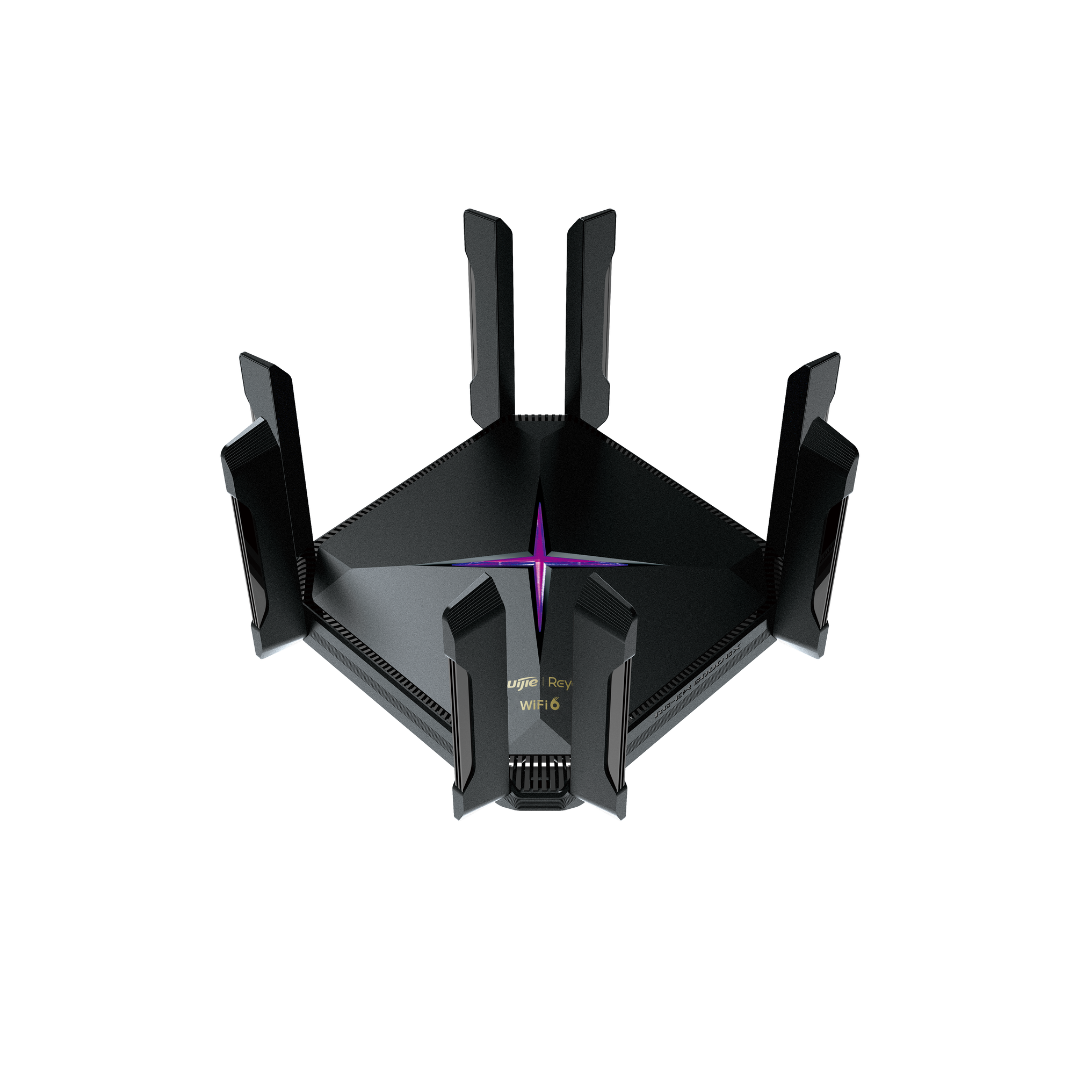

Ruijie RG-EW6000GX AX6000 Wi-Fi 6 Mesh Router with a 2.5 Gbps Port
| RG-EW6000GX, 6000M Wi-Fi 6 Mesh Router with 2.5G Port | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Type | Wi-Fi 6 Mesh Router |
| Description | Ultra-high-speed Wi-Fi 6 router with 160 MHz, quad-core chipset, gaming port, cloud management, and full-space-coverage Reyee Mesh solution. |
| Maximum Clients | Up to 384 |
| Key Features | 2.5 Gbps port, dual-WAN aggregation, dual-LAN aggregation, gaming port, strong signals, wall-penetration coverage, Reyee Mesh 3.0, cloud management. |
| Hardware Specifications | |
| Characteristic | Details |
| CPU | Enterprise-level Quad-Core CPU, 2.0 GHz |

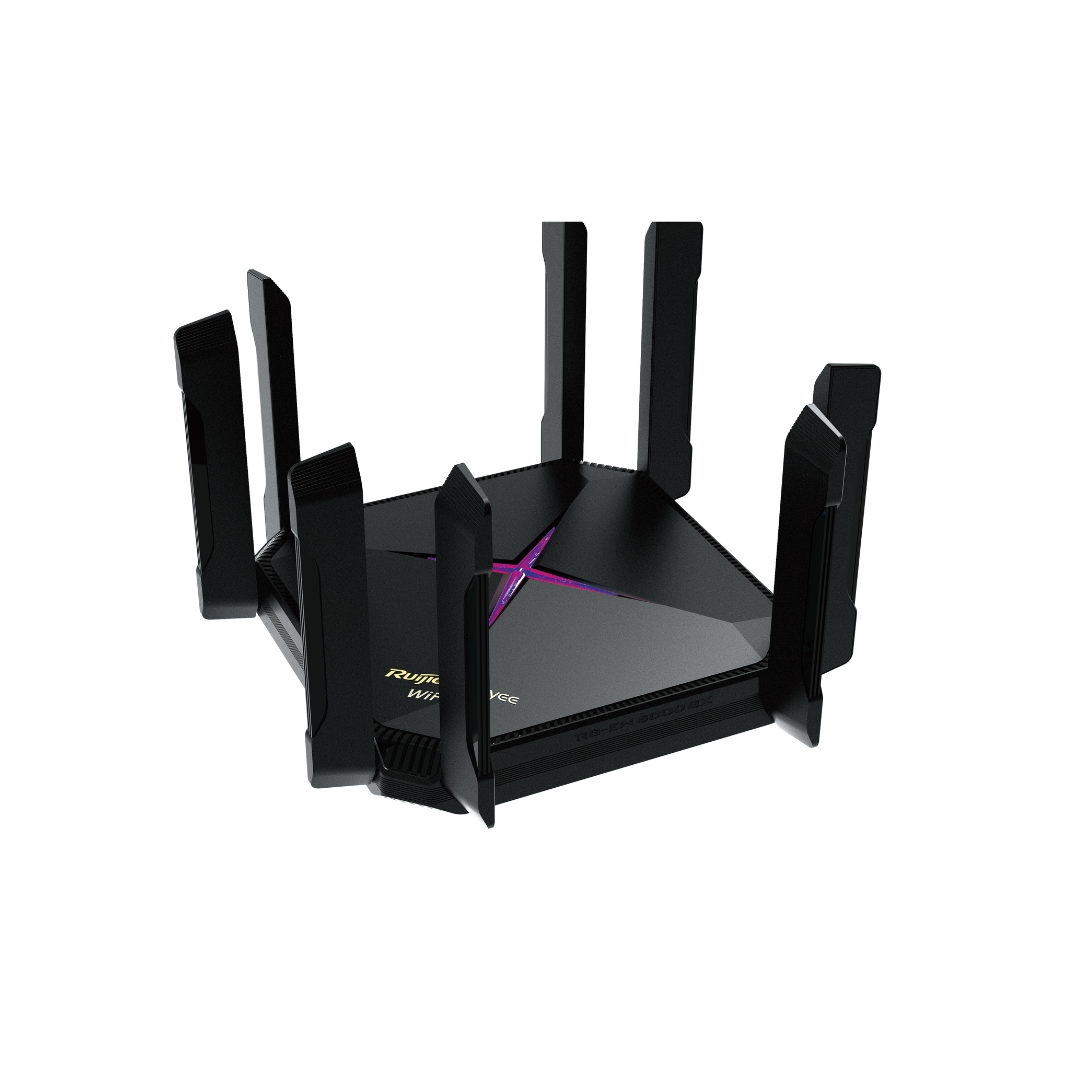

| Antenna | 8 external antennas |
| Antenna Gain (2.4 GHz) | 4.5 dBi |
| Antenna Gain (5 GHz) | 5.5 dBi |
| Wi-Fi Radio | |
| Characteristic | Details |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Max Wi-Fi Speed | 2.4 GHz: 1147 Mbps, 5 GHz: 4804 Mbps |
| Spatial Streams | 8 (2.4 GHz: 4x4, 5 GHz: 4x4) |
| System Performance Capacity | |
| Characteristic | Details |
| Max Concurrent Clients | 2.4 GHz: 128, 5 GHz: 256 |
| Recommended Concurrent Clients | 2.4 GHz: 16, 5 GHz: 64 |
| Network Management | |
| Characteristic | Details |
| Cloud Management | Ruijie Cloud management supported |
| Mesh Technology | Reyee Mesh 3.0 |
| IP Service | IPv6 supported |
| Port Specifications | |
| Characteristic | Details |

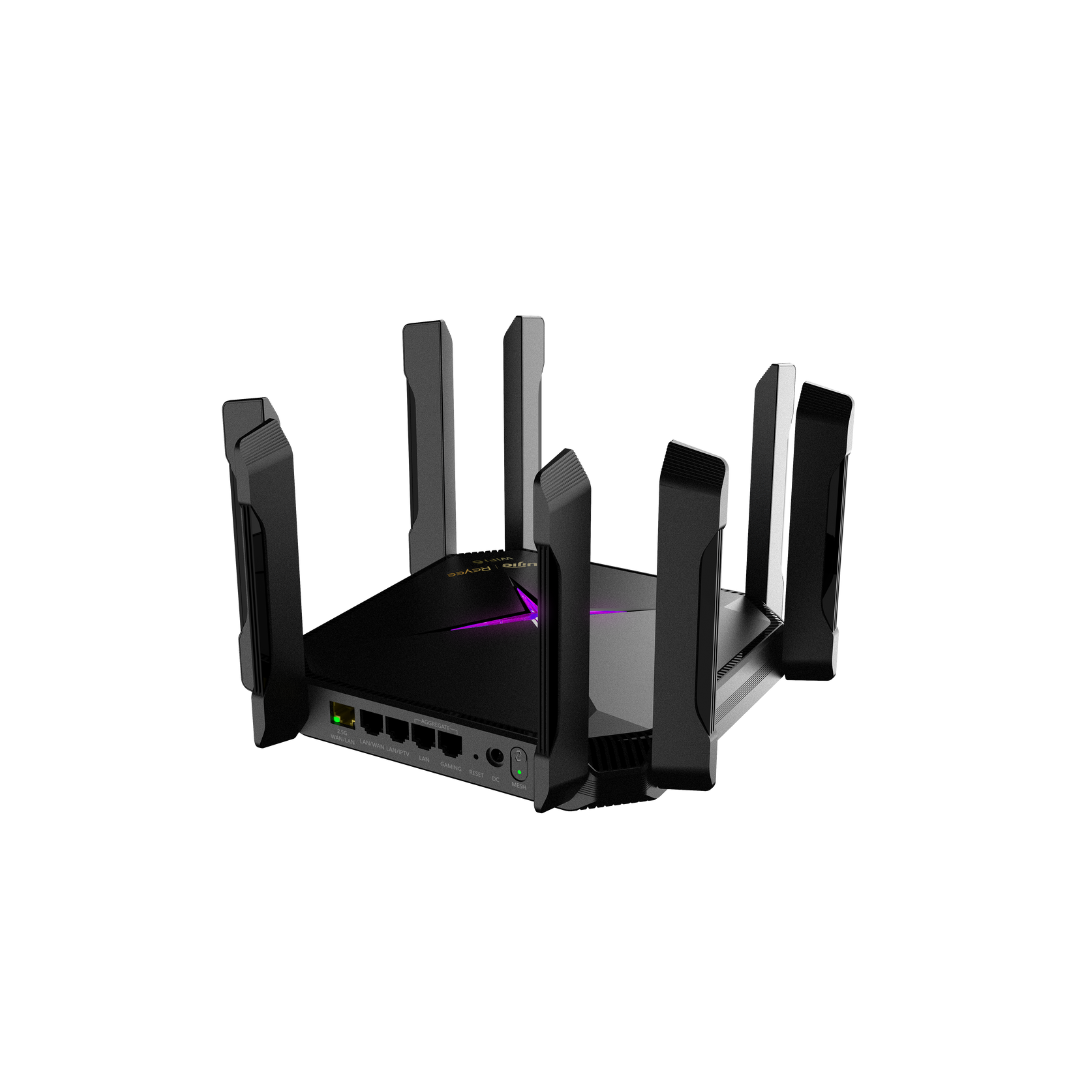

| WAN/LAN Ports | 1 × 2.5 Gbps WAN/LAN, 1 × 1 Gbps WAN/LAN, 3 × 1 Gbps LAN |
| Environment and Reliability | |
| Characteristic | Details |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
