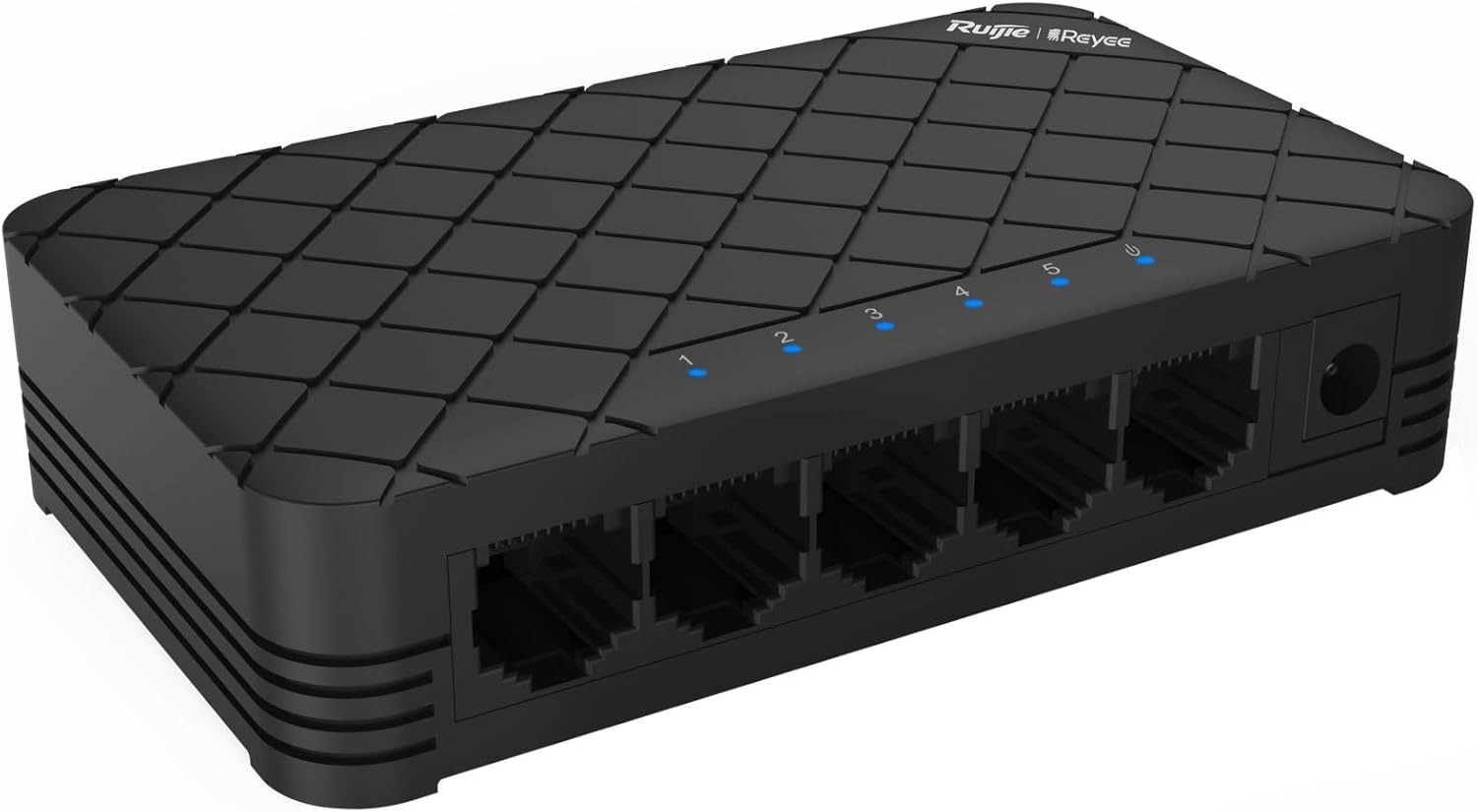

Ruijie RG-ES05G 5-Port Gigabit Unmanaged Plastic Switch
| Ruijie Reyee Series Plastic Switch (RG-ES05 / RG-ES05G) | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Series | Ruijie Reyee Series Plastic Switch |
| Target Users | Small enterprises, small-scale surveillance, SOHO |
| Deployment | Plug and play, zero configuration |
| Compatibility | Network cameras, printers, PCs, and other terminals |
| Design Highlights | Fine craftsmanship, exquisite and powerful design, energy saving |
| Key Features | |
| Characteristic | Details |
| Build Quality | Real 8-pin enterprise-grade quality |
| Reliability | Stringent testing for worry-free operation |
| Ease of Use | Plug and play, no configuration required |
| Adaptability | Applicable for various networking scenarios |
| Model Comparison | |
| Characteristic | RG-ES05 / RG-ES05G |
| Ports | RG-ES05: 5 × 10/100M Base-T ports RG-ES05G: 5 × 10/100/1000M Base-T ports |
| Operating Mode | Half-duplex, full-duplex, auto-negotiation; supports auto MDI/MDIX |
| Backplane Bandwidth | RG-ES05: 1 Gbps RG-ES05G: 16 Gbps |
| Packet Forwarding Rate | RG-ES05: 10Mbps: 14,880 pps; 100Mbps: 148,800 pps RG-ES05G: 10Mbps: 14,880 pps; 100Mbps: 148,800 pps; 1000Mbps: 1,488,000 pps |
| MAC Address Table | RG-ES05: 1K RG-ES05G: 2K |
| Power & Hardware Specifications | |
| Characteristic | Details |
| Power Supply | External, DC 5.0V / 600mA |
| Maximum Power Consumption | ≤ 2.5 W |
| Cooling | Fanless |
| Dimensions | 108.1 mm × 64 mm × 24.8 mm |
| Environment & Reliability | |
| Characteristic | Details |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
