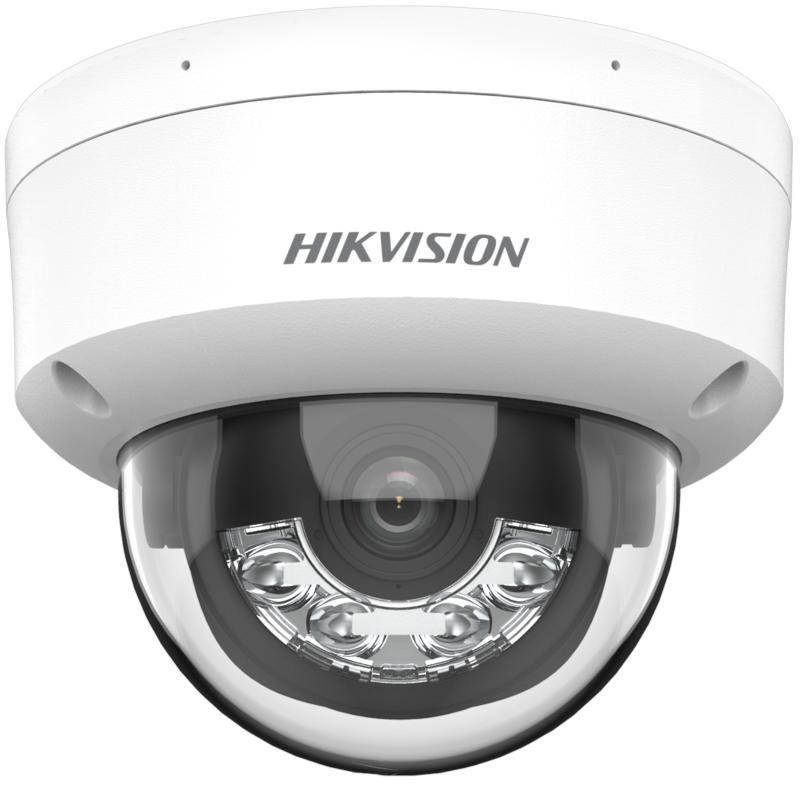

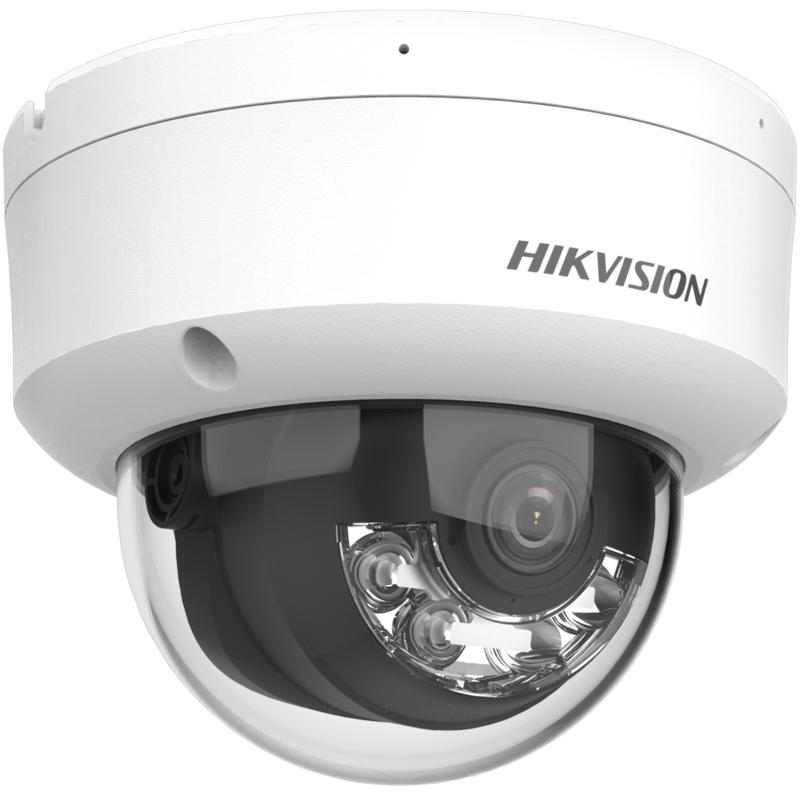

HIKVISION 4MP Smart Hybrid Light Fixed Dome Network Camera-B28 2.8mm (DS-2CD1143G2-LIU)
| DS-2CD1143G2-LIU(F), 4 MP Smart Hybrid Light Fixed Dome Network Camera | |
|---|---|
| General Information | |
| Characteristic | Details |
| Product Category | Fixed Dome Network Camera |
| Resolution | 4 MP (2560 × 1440) |
| Description | 4 MP Smart Hybrid Light dome camera with human & vehicle detection, built-in microphone, vandal-resistant design |
| Protection | IP67, IK08 |
| Camera | |
| Characteristic | Details |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
| Lens | |
| Characteristic | Details |
| Lens Type | Fixed focal lens, 2.8 mm / 4 mm optional |
| Field of View (2.8 mm) | H: 98°, V: 54°, D: 114° |
| Field of View (4 mm) | H: 78°, V: 42°, D: 93° |
| Aperture | F1.6 |
| DORI Performance | |
| Characteristic | Details |
| DORI (2.8 mm) | D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| DORI (4 mm) | D: 78 m, O: 31 m, R: 15 m, I: 7 m |
| Illuminator | |
| Characteristic | Details |
| Supplement Light Type | IR & White Light |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Video Specifications | |
| Characteristic | Details |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Characteristic | Details |
| Audio Type | Mono |
| Built-in Microphone | Yes |
| Network | |
| Characteristic | Details |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IPv6, UDP, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| Users | Up to 32 users (Administrator / Operator / User) |
| Storage | |
| Characteristic | Details |
| On-board Storage | microSD/microSDHC/microSDXC up to 512 GB (-F model) |
| Power Supply and Consumption | |
| Characteristic | Details |
| Power Supply | 12 VDC ±25%, PoE (IEEE 802.3af) |
| Max. Power Consumption | 7.5 W |
| Physical Specifications | |
| Characteristic | Details |
| Material | Metal & Plastic |
| Dimensions | Ø121.4 × 97.7 mm |
| Weight | Approx. 550 g |
| Environment and Reliability | |
| Characteristic | Details |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
